40' Caliber 40 LRC LRC

Caliber 40 (LRC) "Serena"
"Serena" was custom built for its present experienced yacht owner by Caliber Yachts Inc. in Clearwater Florida, and incorporates all the latest design experience of this quality blue water sailboat builder plus numerous unique owner upgrades.
This 2003 Caliber 40, Long Range Cruiser (LRC) meets all those expectations. The 40 LRC has standard features like Water Tight Collision Bulkhead, Water-Tight Rudder Dam, Caliber Smart Electrical System, Caliber Smart Fuel System, Convertible Cutter Rig and much more.

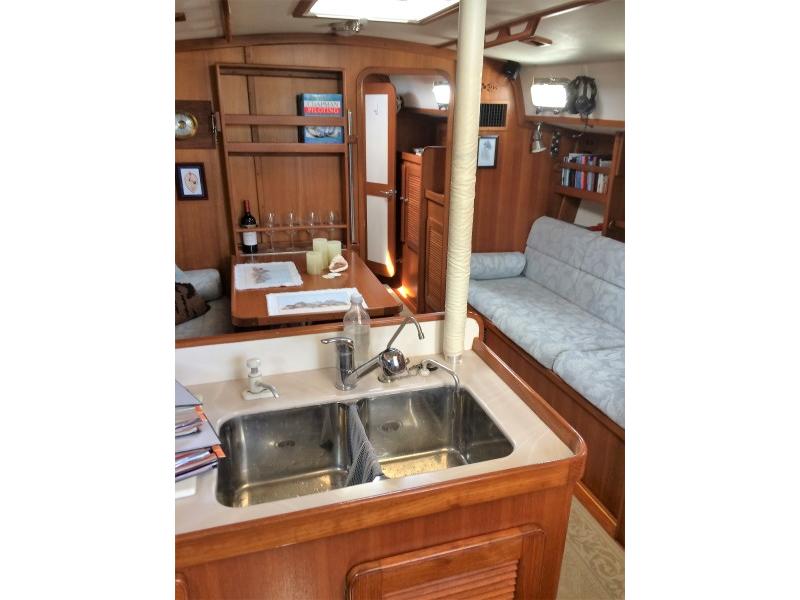

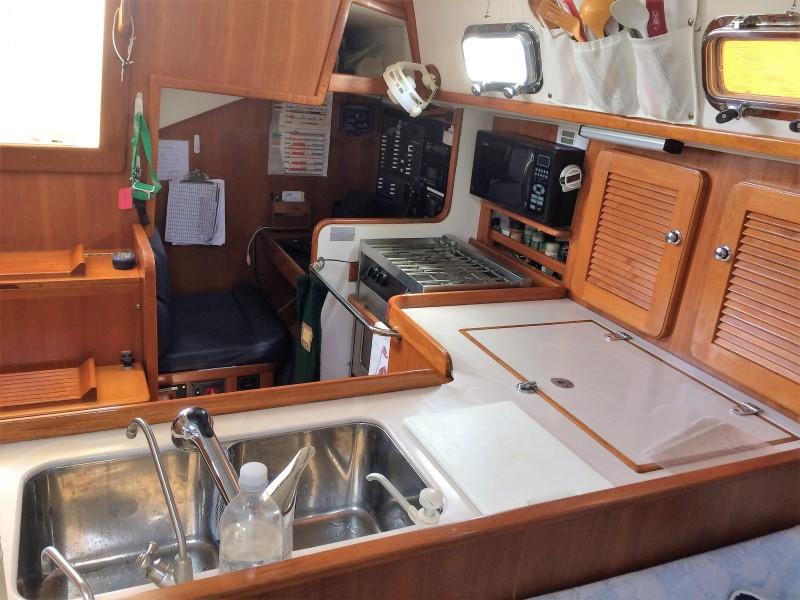

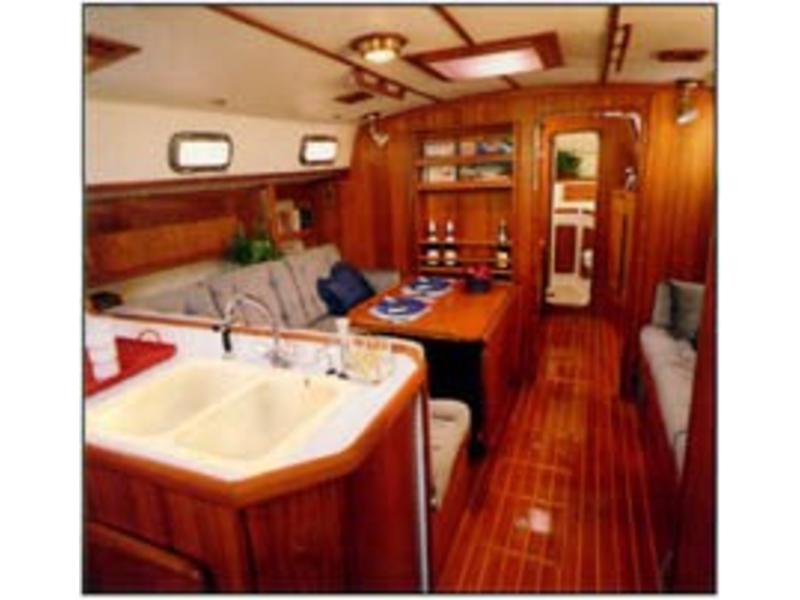

With her large capacity fuel and water tanks, "Serena" is set up for long distance sailing and live-aboard with 3 custom solar panels. She is fitted with a large "fridge/freezer", propane stove with two propane tanks and a lot of storage space. She has two double berths, two heads, each with hot/cold pressure shower facilities, a large comfortable salon with a capacious extending dining table, and a chart table and seat at the electrical panel.
Some of Serena's special features
•Diesel DC generator that is capable of powering the A/C and located above the Yanmar diesel power plant so it is not compromising access to other equipment
•Her Hard fiberglass California dodger top is fitted with 5 panels of hard, very clear acrylic, "Easy To See Why" glass, and the bimini and dodger accommodate 6.1 feet with 4 detachable side curtains which stow nicely above rear state room
•300 Watt solar panels above the bimini with a Solar boost digital read out regulator
•Rain water collection system which is easy to set up
•Two rear rail comfortable cockpit seats with cushions
•Individual sun covers for most of the teak and another to cover most of the entire boat.
•New 120% Genoa in February 2017. Boat has been meticulously maintained by owner with a complete maintenance log and extensive spare parts.
•Four person life raft fitted to the rear rail
•Owner will give mechanical guidance and help with his knowledge about "Serena" to the new owner for an extended time period

MECHANICAL SYSTEMS:
• Yanmar 4JH3E 50 HP (continuous)/56 HP (Maximum output) diesel engine with 2250 engine hours
• Yanmar “C” panel with analog engine oil pressure, water temperature, and tachometer
• Kanzaki KM3A1 2.64:1 ratio transmission
• 1 ¼” Propeller shaft with Tides Marine dripless shaft seal
• 190 Gallons of diesel in two integral fiberglass tanks
• Dual Racor 500 FG fuel filters with vacuum gage
• Walbro 12V fuel transfer pump

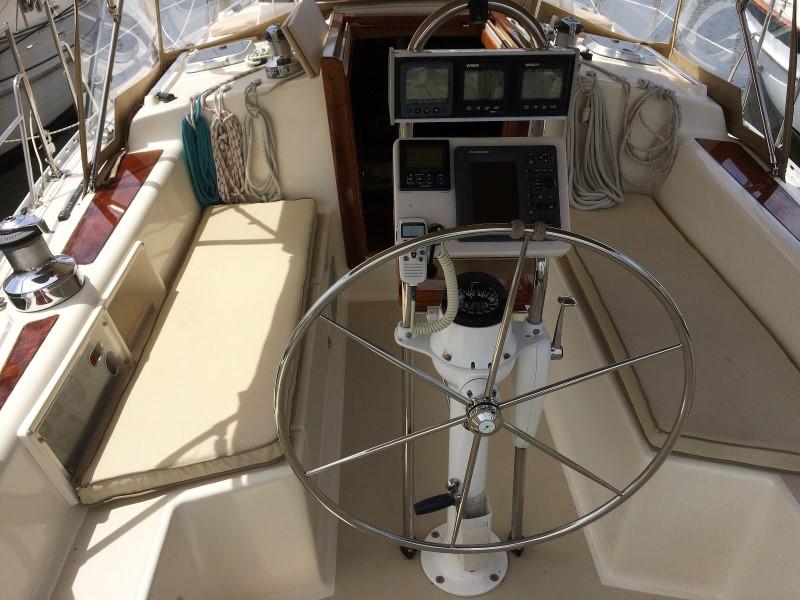

• Whitlock steering pedestal with 36” diameter leather covered steering wheel
• Whitlock single lever shift/throttle on pedestal
• Isotherm water cooled 12V refrigeration compressor with Adaptive Speed controller
Isotherm water cooled 12V freezer compressor with temperature control
• Foot pump at sink for manual pumping of fresh or salt water
• Seagull IV X-1F drinking water purification system with faucet at sink
• Jabsco Par Max 3.5 GPM water pressure pump and accumulator
• Fiberglass integral water tanks totaling 195 gallons
• Anchor wash down pump: salt
• Isotherm Basic 40 (11) gallon hot water heater: engine & 110V heated
• Whale Gusher Titan manual bilge pump-cockpit operated
• Rule 12V 2000 gph bilge pump with automatic Groco level control switch (very dependable)
• Reverso oil change pump
• 1500 BTU marine air, air conditioner/heater
• (2) Raritan PH11 marine heads
• PVC fitted for most of the piping for both heads
• 100 gallon fiberglass type II holding tanks with deck pump out
• 12V automatic shower/bilge Jabsco (372902 series) pump with Groco level control switch
• (2) 3 gallon aluminum propane bottles with OPD valves
ELECTRICAL:
• (3) 6 - 6 volt (2 x 3 in series) 12V house batteries totaling 670 amp hours (new 2014)
• AGM 12V starting battery (new 2013)
• Xantrex inverter/charger 3000 watts,
• Ample power battery monitor and inverter/charger control panel
• Newmar 30 GI-30 galvanic isolator on shore power circuit
• 75’ 125V 30 amp shore power cord
• (3) Kyocera 300 watt total rigid solar panels on bimini top
• Blue Sky Solar boost 2000E charge controller
• Ample power 12V alternators and smart regulators for Yanmar diesel
• Blue Seas emergency house x start switch
• Blue Seas 12V and 120V switch/breaker panel with digital volt and ammeters
ELECTRONICS & NAVIGATION:
• (2) Navpods on steering pedestal:
• Furuno Navnet 1722C radar/chart plotter at helm
Nexus Multi control in nav station repeater at chart table
• 2KW radome on mast with stainless steel protector bars
• Simrad AP22 autopilot control at helm
• Three Nexus multi screens on helm
• Simrad HLD2000 hydraulic linear autopilot drive
• Standard Horizon VHF mic with AIS capability at helm with VHF unit at nav station
• Garmin (Nexus) NX 2 digital wind instrument and two multi screens at helm
• Nexus NX2 server for managing wind, depth, and log with nmea transmitting all data to computer
• Electronic charts for Florida, Bahamas, and Atlantic coast
• Standard Horizon NEMA output to laptop
• Ritchie power damp 5-1/4” binnacle compass
• Trilens radar reflector up high on mast
• Aquasignal deck light
• Aquasignal masthead tricolor/anchor light with LED anchor bulb
• Forspar Xenon strobe light on masthead
• Comnav NX2 server to multiplex navigation data and output NEMA data for use on laptop
• Icom M802 SSB with AT130 tuner and insulated backstay antenna
