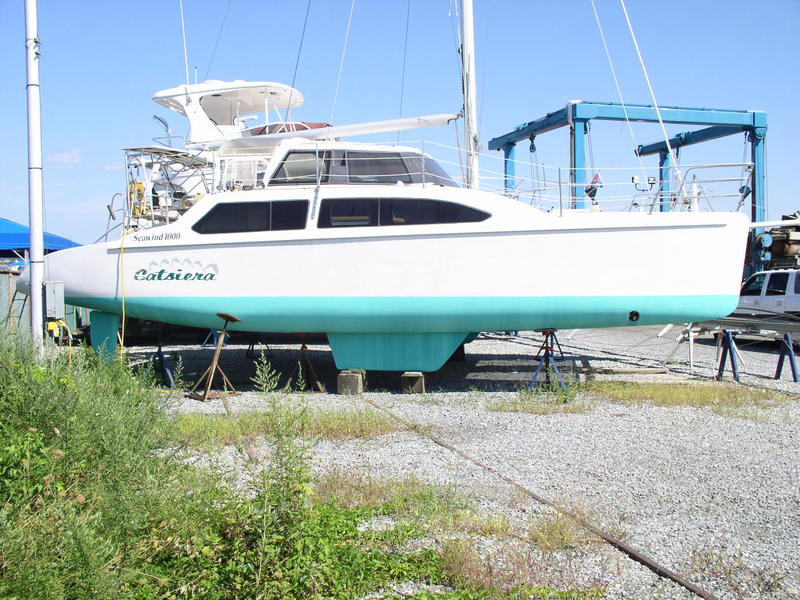

40' Seawind 1000 Custom

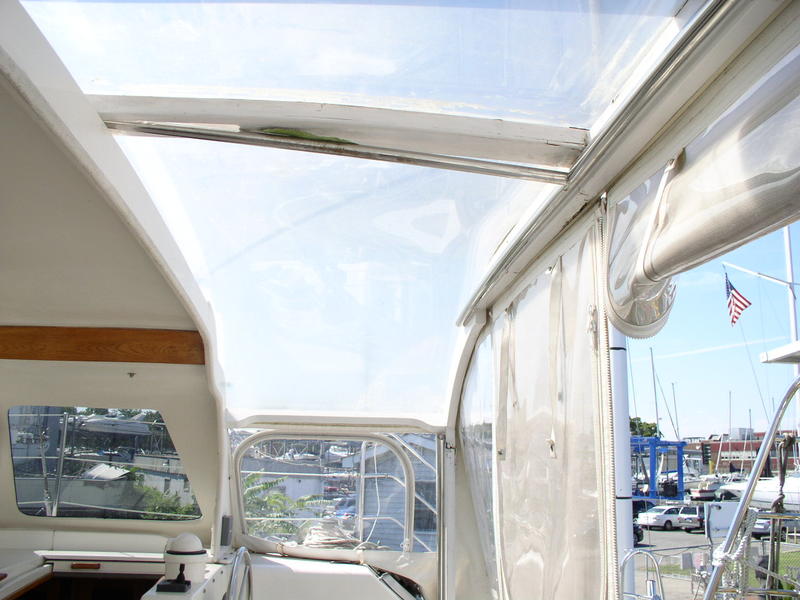

This is a Seawind 1000 customized with extended transoms that was the model for the 1000XL. In addition, a Custom Polycarbonate Hardtop was installed that was later a feature of the 1000XL2.

This Seawind is loaded with extras to include:

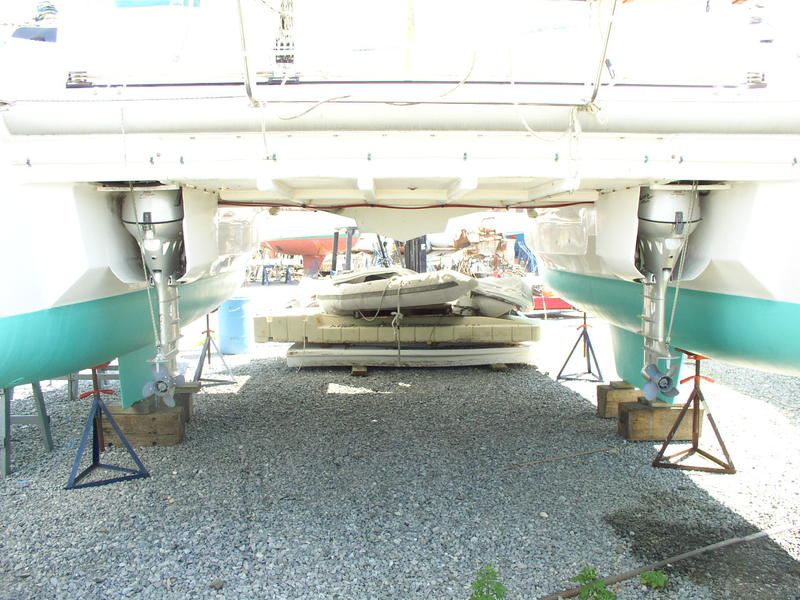

Honda 25 hp 4-Stroke engines
Vetus 5500 Joystick-Controlled Bowthruster
110 Volt Reverse Cycle A/C with Heat
Radar
Autopilot
Instant Hot Water Heater
Electric Toilet
Electric Anchor Windlass

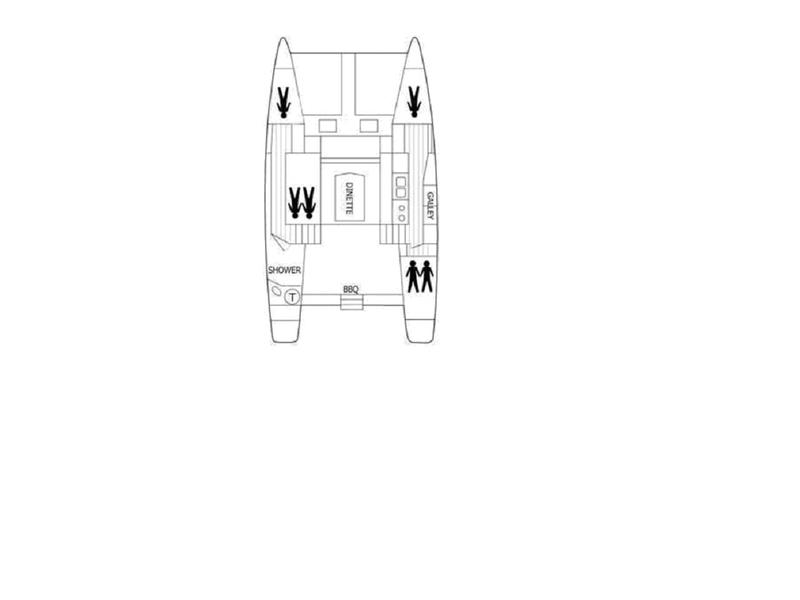

Accommodations

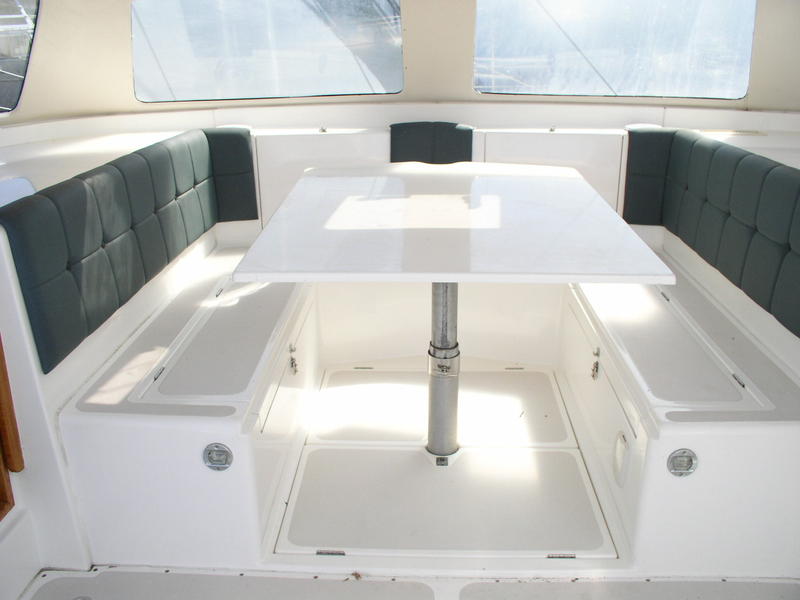

The layout is focused around the central cabin, with a teak and holly sole and a huge, U-shaped settee that can serve as a giant berth when the dining table is lowered and inserts are added. It's a versatile space that merges directly with the cockpit in an open floor plan when sailing or on the hook, but it can be closed off with a curtain for privacy. Comfortably equipped with A/C and Heat.

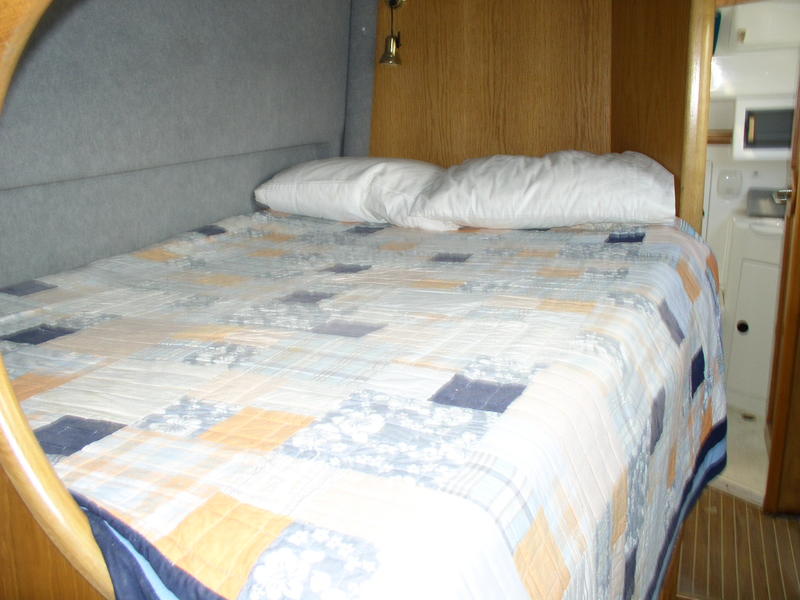

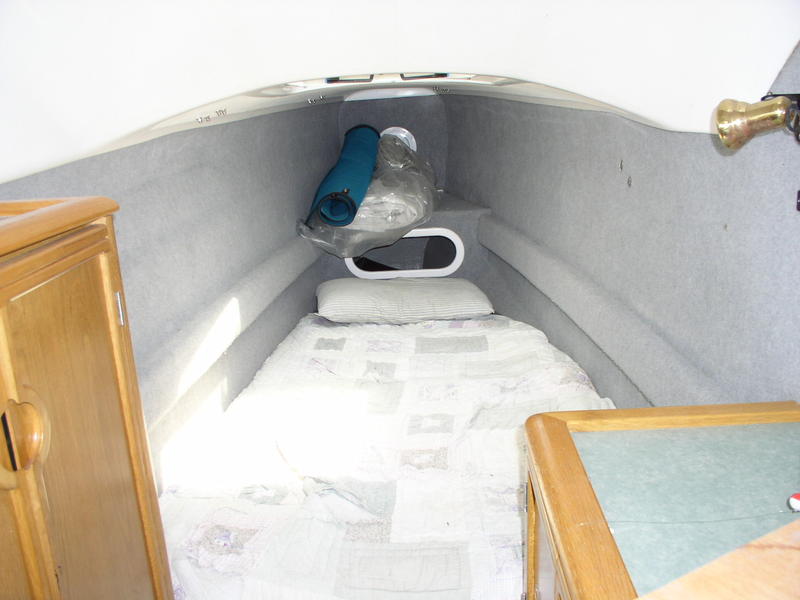

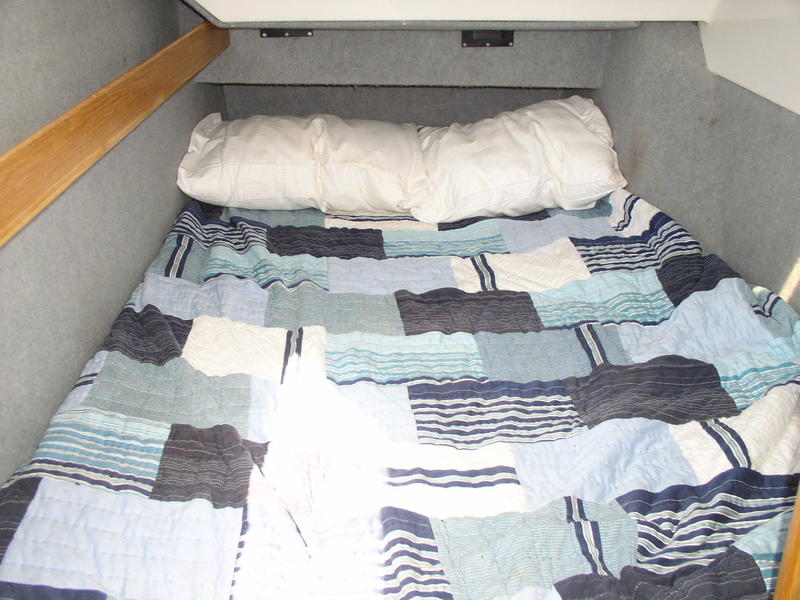

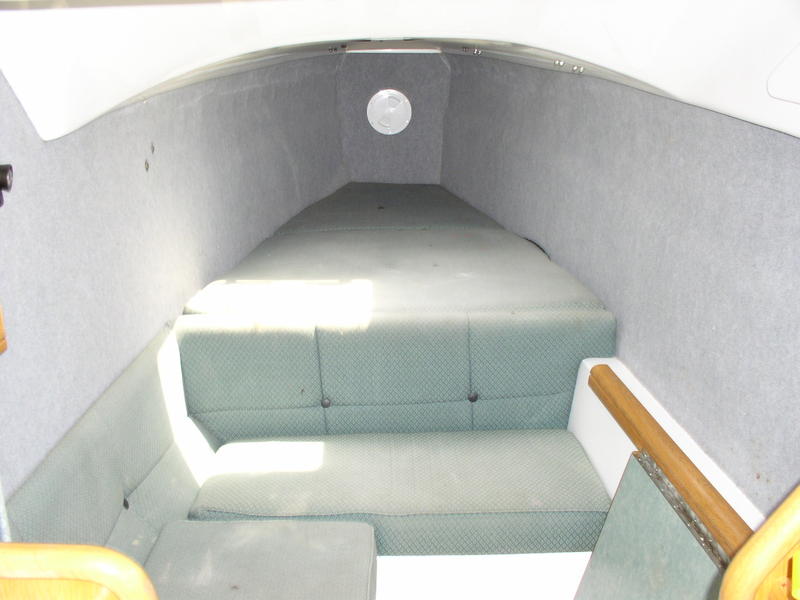

In the port hull, there's a large double berth amidships, with a second double forward. The galley, with a 12-volt refrigerator and freezer powered by twin 120-volt solar panels, is to starboard, again with double berths found in the bow and stern.

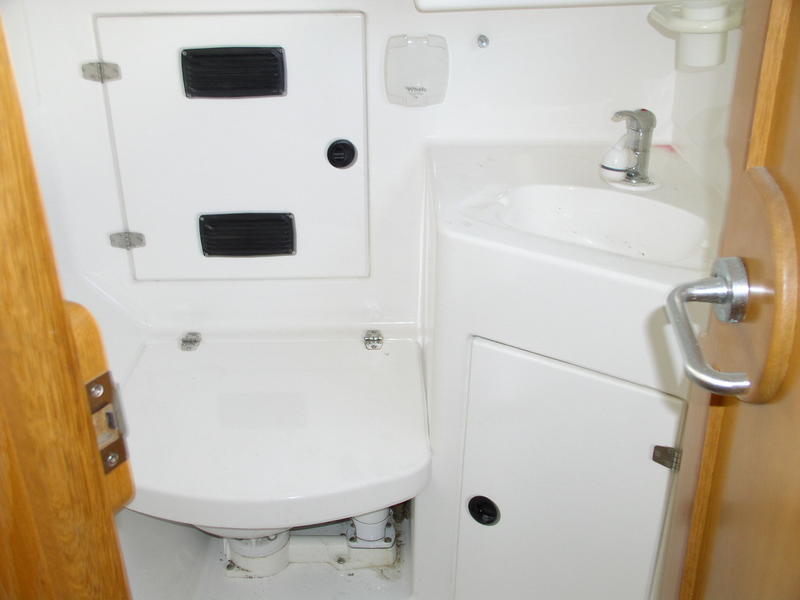

The head has an electric toilet, sink and shower w/bilge pump and overboard discharge.Hot water is provided by an Instant Hot Water System.

Galley

Refrigerator and Freezer
2-Burner Stainless Steel Propane Stove
Double Stainless Steel Sinks
Pressure Fresh Water System
Instant Hot Water Heater
Laminex Counter Tops
Large Storage Cabinets and Drawers


Electronics

Twin steering compasses. 100mm diameter card.
VHF Radio
Log , Speed, Depth: Raymarine Tridata.
Raymarine Autopilot
Raymarine RL- 70 Radar
GPS


Electrical

Custom made electrical switch panel with circuit breakers. Very high quality throughout.
Tinned wire used throughout.
3 x heavy duty 105 AH batteries.
230 amp heavy duty isolation switch.
Solar Panels: 2 x 120 watt solar panels.
All cabins with individual lighting.
Galley/saloon area – 2 x fluorescent lights.
Diffused lights over aft deck – 2 lights.
Center cockpit lighting.


Sails & Rigging

Mast and boom section Anodized clear.
Standing Rigging – Forestay 3/8 (10mm) 1 x 19 wire – Sidestays 3/8 (10mm) 1 x 19 wire – Diamonds 5/16 (8mm) 1 x 19 wire. All fitted with turnbuckles and end fittings.
Hinged mast base to allow for lowering on boat.
Halyards – 2:1 Main halyard: 10 mm Spectra rope : Heavy duty shackle. – Jib halyard: 8 mm Spectra rope. Heavy duty shackle. – Topping lift: 10 mm Double Braid, Heavy duty shackle – Spinnaker Halyard: 12 mm DoubleBraid with snapshackle spliced to end.
Boom outhaul.
2 x mainsail single-line reefing lines fitted and lead back to the cockpit.
All halyards, reefing lines to be lead back to cockpit through turning blocks, rope clutches (Spinlock).
Sheet Winches: 2 x Harken ST40’s.
Fully battened mainsail. Luff adjustable batten endcaps.
Cruising mainsail cover with integrated lazy jack system.
Self-tacking headsail traveler track with hardware.
Mainsail batten sliders.

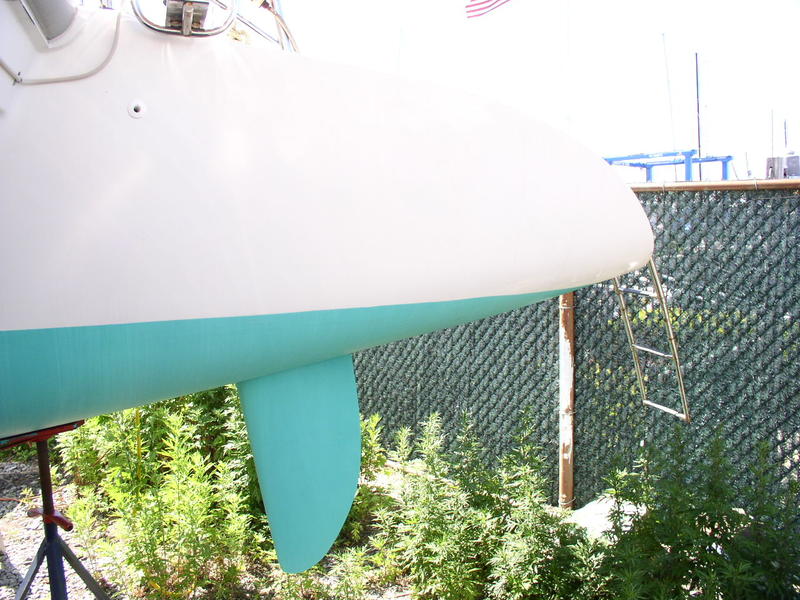

Hull & Deck

Hatches (6 in total) 2 x Forward Hatches Aluminum frame 500 x 500 2 x Mid cabin hatches. 2 x Aft cabin hatches
4 x Mooring cleats.
1 x Anchor cleat.

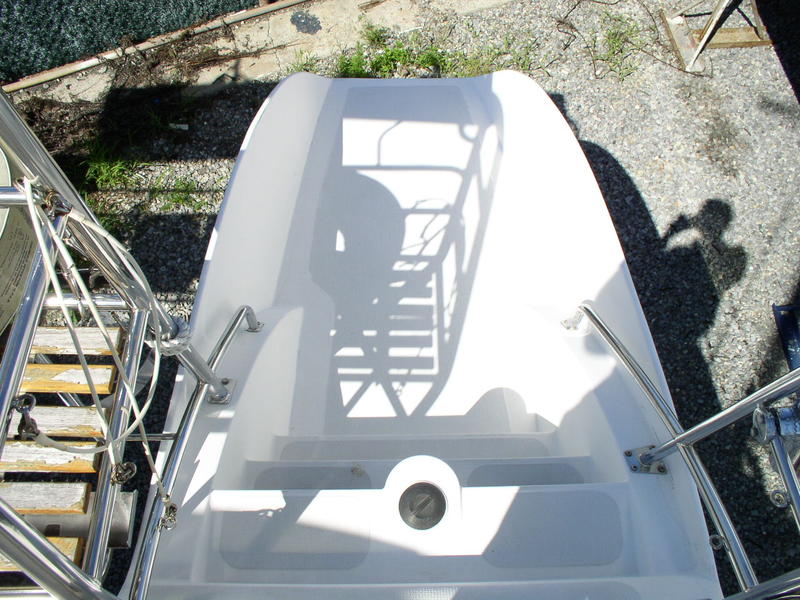

Forward catwalk swim ladder – hinges under hinged catwalk.
Cabin Ventilation: 2 x Dorade vents (PVC “ Seabird”).
Mast base turning blocks
Saddle at base of mast for halyard attachment.
8 x Rope clutches
Stanchions/Rails: High quality stanchions, bow rails and stern rails with 3 life-lines. 600mm high to meet Australian survey & CE requirements.
4 x access gates with pelican hook releases.
1 x manual bilge pump.
2 x Bow seat pulpits with hinging teak slatted seats.
2 x Padeyes mounted on each inboard bow for bowsprit retrofit.

CENTER COCKPIT

Dining table: Lowers down to also create a double bed.
Upholstered saloon cushi
