36' Catalina Yachts 36 MK2

The CATALINA 36 is one of the several highly successful designs of this manufacturer and a well sought after mid-size cruising sailboat. "The target market for the 36 is couples and families who primarily weekend and vacation cruise but may be planning some extended cruising. They want a boat that is comfortable, offers reasonable performance and is stable and predictable to handle. The boat suits their budget and they can add gear for bluewater cruising"- Gerry Douglas for Practical Sailor

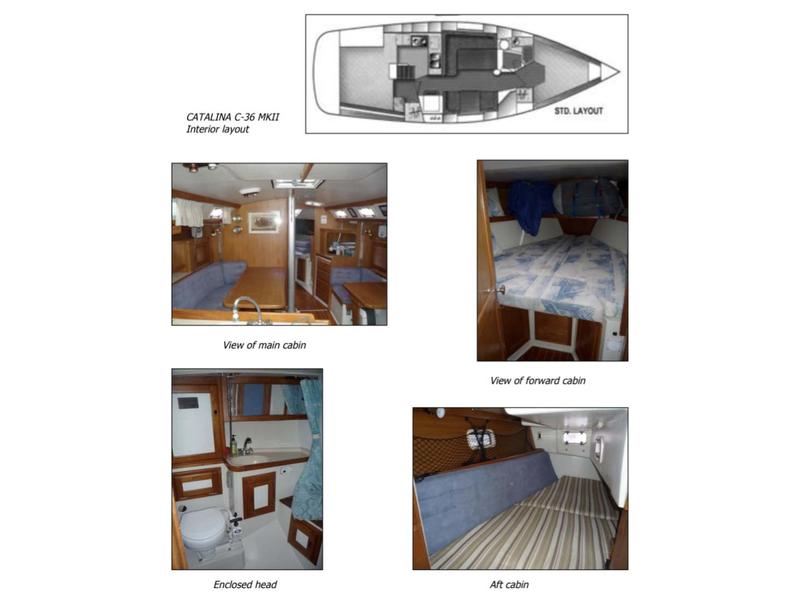

Accomodations:
Forward: Forward cabin V-berth, hanging locker to starboard, enclosed head to port accesible from forward cabin or main cabin.

-Salon with L-shaped dinette to port, convertable to double berth. Settee opposite with game table convertable to single berth. Next aft is a L-shaped galley to port, nav station opposite

-Aft cabin with double berth across and storage locker.

Cockpit seating room = 8

Hull#1426
Hull Type: Fin w/spade rudder
Keel stepped Mast
Standing Rigging: Chromed bronze 1/2 open-body toggled turnbuckles, coupled to Hayn Hi-Mod mechanical & swaged-on terminals & 1 x 19 stainless steel cable.

All lines lead aft to cockpit. New main halyard May 2024.
Dacron mainsail, dacron furling headsail, spare headsail.
Whisker Pole
Winches: Newly serviced/maintenance all four winches in May 2024. Two Lewmar #30 two-speed self-tailing cabin-top, two Lewmar #48 two-speed self-tailing. Harken Cruising 2 headsail roller furler. Garhauer adjustable mainsheet traveler. Garhauer stainless steel turning blocks Garhauer single-rope clutches (8)

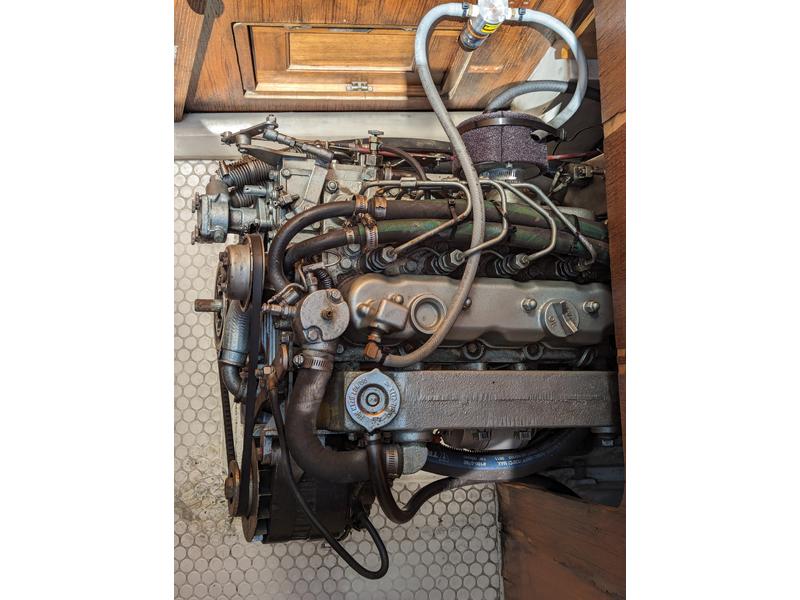

Engine: Inline four-cylinder naturally aspirated Make: Universal/Westerbeke Model: M-35A HP: 35 @3 000 rpm maximum. Hours 3028. May 2024: New engine starter, engine start push button. New oil, oil filter, fuel filter, water fuel separator filter, electronic fuel pump and fuel hoses.

New Edson steering chain and wire kit installed 2023 pedestal rebuild kit, chain sprocket, side-mounted wheel brake replacement.

Maxwell 500 horizontal capstan 12-volt anchor windlass. Bruce 44Lb claw type, 1/4" chain x 40ft x 1/2" 3 strand rode x 150ft
Spare Fortress FX-16 aluminum fluke type stored in chain locker. 200 3-strand rode spare.

Fuel: 75 Gallons total. 1 x 25 Gal stock 1 x 50 Gal. Temp, tachometer, water temperature, voltmeter, high water temperature & low oil pressure light & audible alarms.

Propeller: Michigan Sailer, three-bladed bronze. 1" shaft. Packing Gland: PYI-PSS Dripless

Electronics: At helm - Installed new in 2020 Raymarine Axiom 9 MFD in Navpod & new pedestal, Raymarine Quantum 2 radome with doppler. Ritchie 5" binnacle mounted Globemaster Model SP-5C.i70s MFD instrument display in cabin. Raytheon Ray 201 VHF.

Battery Bank: Four Lifeline 6-volt AGM GPL-4CT wired in series/parallel to make 440 Ah house bank, & 12-volt flooded dual purpose group 27 engine starting.
Engine Alternator/Amps: PRESTOLITE / 55 A
Inverter/Charger: HEART INTERFACE Freedom 15 / 75 A 1500 W

Shore Connection: Smartplug 30-Amp Outlets: GFCI protected Accommodations

78 Gal. freshwater total between 3 tanks. 2 x 22 Gal., 1 x 34 Gal. Jabsco par-max plus 4 GPM water pressure pump installed new in 2020. Seaward 6 gallon water heater.

De-watering:
Rule 2000 w/ float switch in bilge. Whale diaphragm in cockpit.

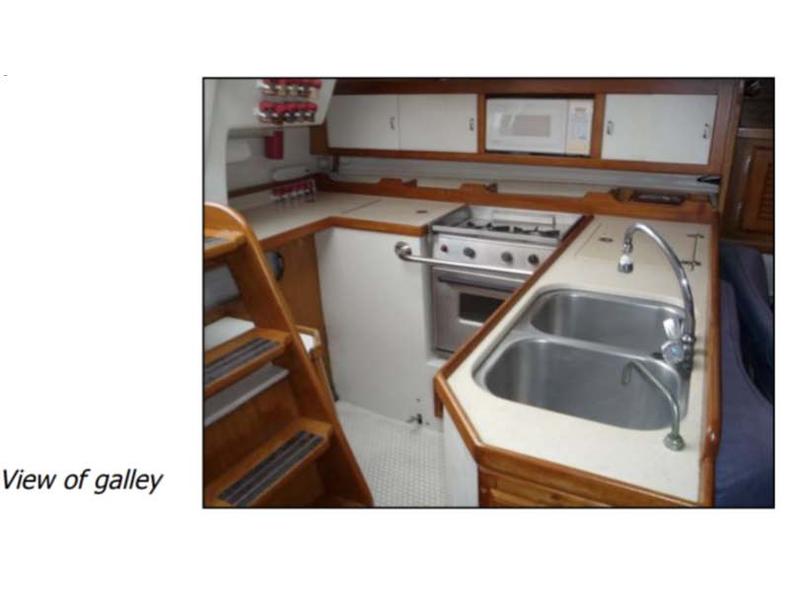

Galley Stove: Hillerange two-burner with oven. Fuel: LPG, 10 lb. tank. Safety solenoid 12V with pressure gauge.
Refrigeration: Adler Barbour 12-volt air-cooled. Goldstar microwave. Dual basin S/S sink tank.

Plumbing Head: Jabsco manual installed new in 2023. 15 Gal. holding tank.

Additional Equipment:
DUAL AMB600W AM/FM/CD stereo/radio. 2 x Polyplanar cabin speakers. 2 x Boss cockpit speakers.
Transom rail mounted Magma Grill
Bell 4" Brass case barometer & ships clock
